CubiX
The first incubator-free microphysiological system in the world. It enables mimicking physiological and pathological culture conditions in vitro. CubiX is the only microenvironment controller fully compatible with live imaging. You will never be blind to your sample ever.
CubiX is scalable & customizable allowing you to use custom made chips, multiwell, commercial microfluidic chip, and many more to help you get better and longer biological culture.
Cherrybiotech
Main Features
The only commercial MPS PDMS free device with no bias in toxicology and efficacy studies
Direct integration in existing analysis workflow, without disruption of the culture conditions
From 6 to 24 well allowing a direct transfer of the culture protocol
Physiological maintenance of a differentiated endothelium with an organ stroma >5 days
Overview
As deep tech entrepreneurs, we choose the entrepreneurial path instead of the academic one. We are a team of risk-takers and we need to do more with less.
We are now at an early stage of development of our company before the product-market fit. Cubix, our main product, is in a pre-sales phase.

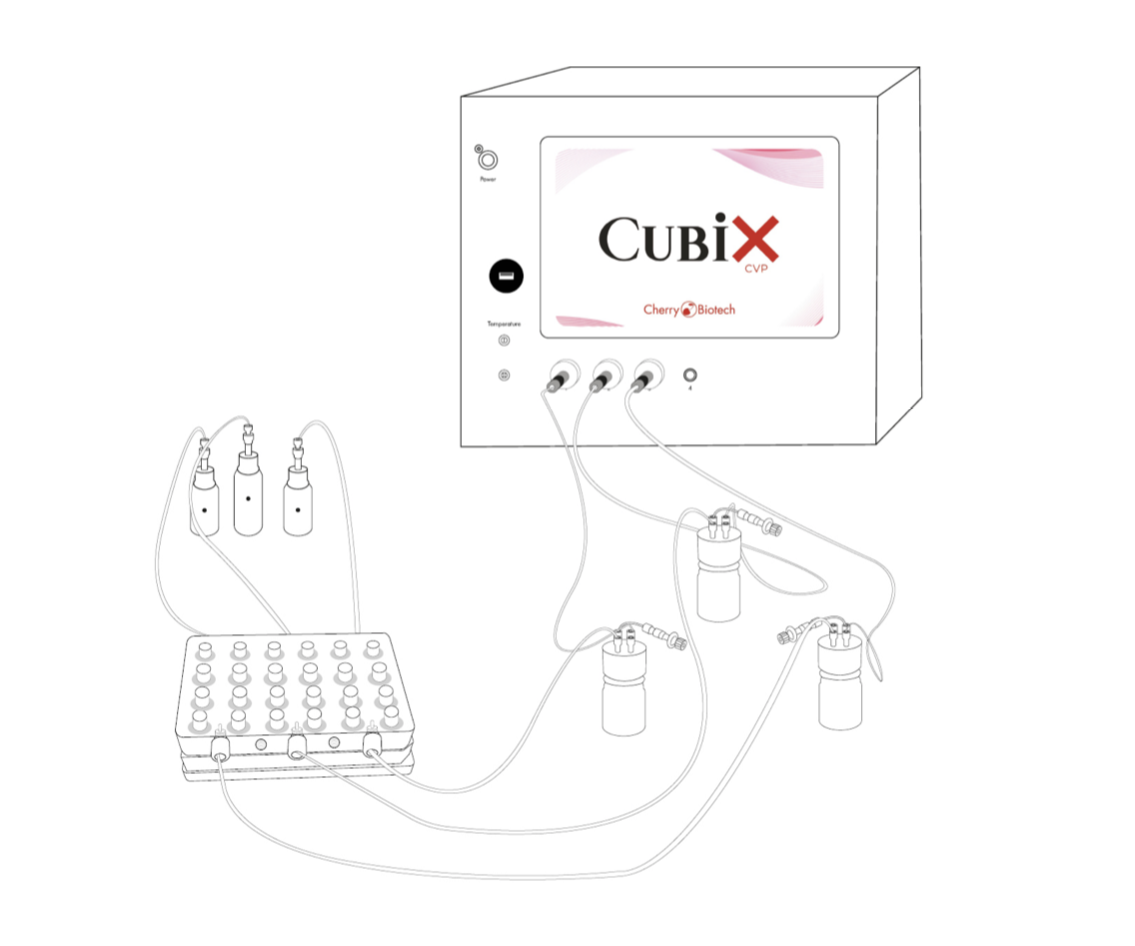

- Cubix Control Unit
- Integrated Software
- Culture Medium Collection Flasks
- External Culture Medium Reservoir
- Cubix Culture Unit
Emulating human cells and tissues physiology (Renewal/Shear stress)
User-friendly interface to pilot Cubix control unit, no need for external devices to control
Allows to collect culture medium at the exit of the culture unit for further analysis.
For long-term experiments, up to 4 different medium compositions.
The versatile element of Cubix can be used from 6 to 24 well plates, as well as any commercial microfluidic chip.
Technical Specifications
We developed the first Plug & Play system that take advantages both of organ-on-a-chip technologies and artificial intelligence analysis. CubiX allows performing all your in-vitro experiments in a controlled microenvironment with the automated acquisition of optical, biochemical and electrophysiological parameters.
Artificial intelligence will take advantage of resulting massive data in order to assist users in taking decisions and better interpreting results.
RANGE - 0 - 80° C
ACCURACY- MAX 0.5° C REGULAR 0.25° C
Stable over weeks
Continuous Flow - 70μL/min to 20mL/min
Pulsative Flow - Max 8μL/min to 20ml/min
Mimic any shear stress in the human body
CO2 N2 O2
Upon request: H2, NO2, and others...
Tunability 0-100%
HYPOXIA NORMOXIA HYPEROXIA
Special Culture Device - 24 multi well plate, 6 well plate + Transwell membrane
Commercially available by - CherryBiotech, Ibidi. Beon-chip. Chamber
Chips developed by customers

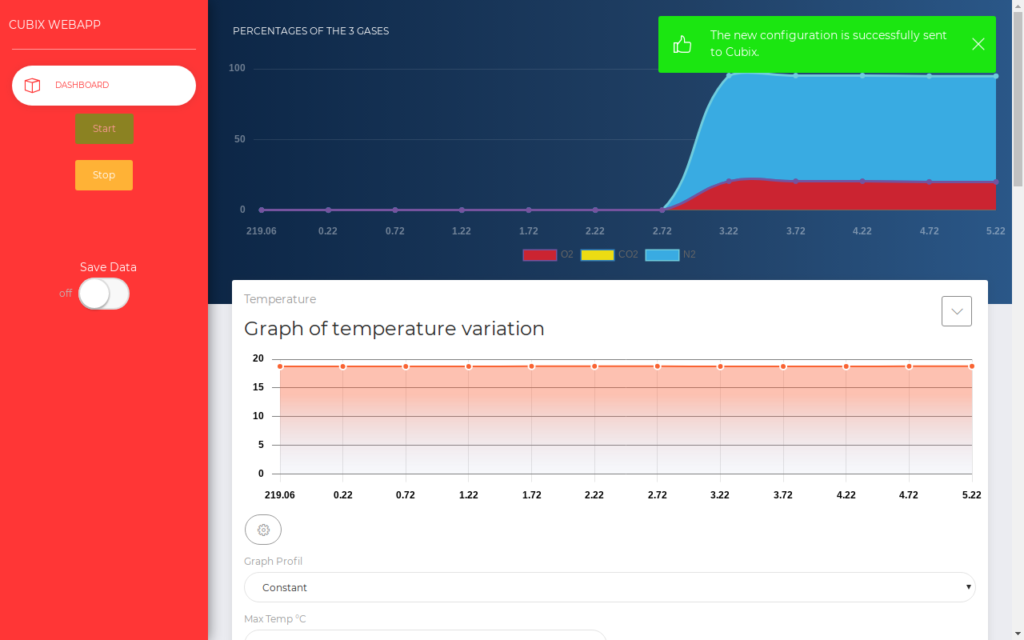

User Interface
Testimonials
Learn how Cubix impacted researchers, the first incubator-free microenvironment controller in the world. Enabled the mimicking of physiological and pathological culture conditions in vitro. CubiX is the only microenvironment controller fully compatible with live imaging. You will never be blind to your sample ever.
CubiX is scalable & customizable allowing you to use custom made chips, multiwell, commercial microfluidic chip, and many more to help you get better and longer biological culture.
Discover the applications of Cubix
